Two synchronization algorithms for intermediate-ML models.
TODAY'S ISSUE

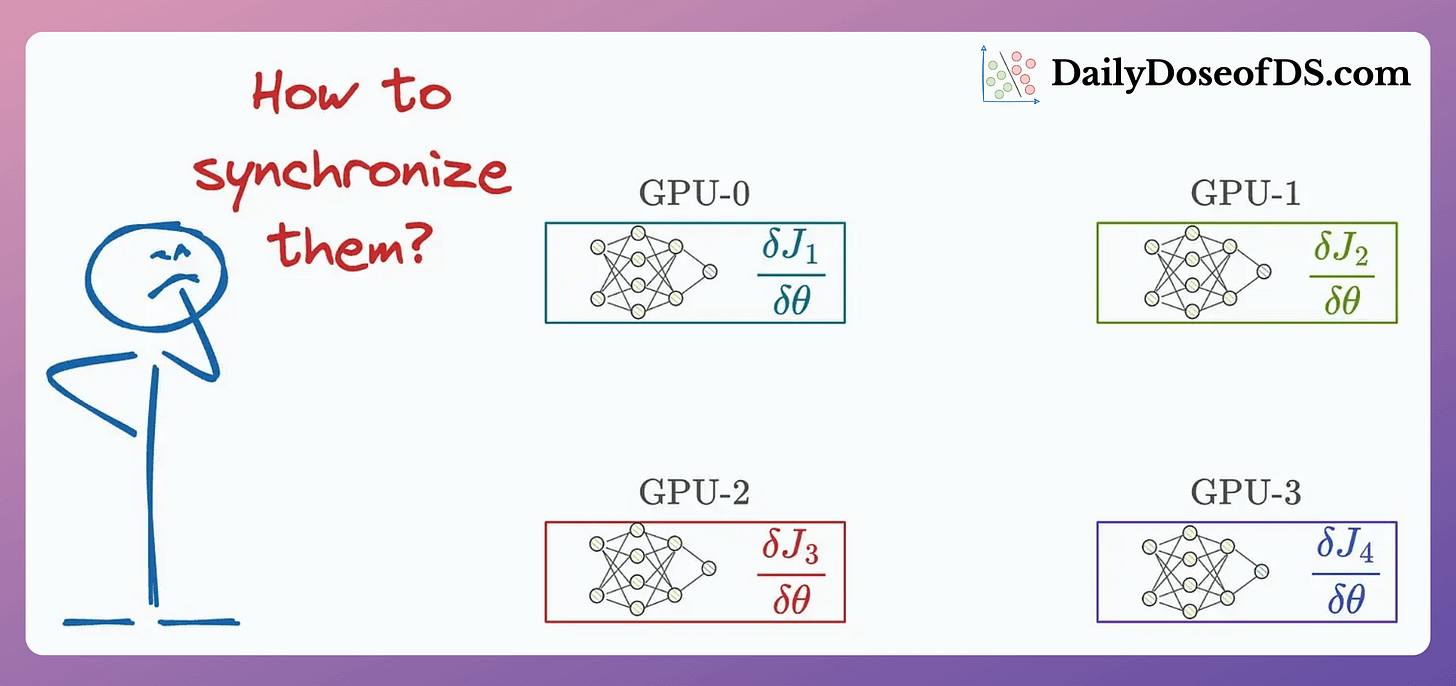

One of the biggest run-time bottlenecks of multi-GPU training is observed during model synchronization:
In today’s issue, let’s understand two common strategies to optimize this for intermediate-sized models.
If you want to get into the implementation-related details of multi-GPU training, we covered it here: A Beginner-friendly Guide to Multi-GPU Model Training.
Let’s begin!

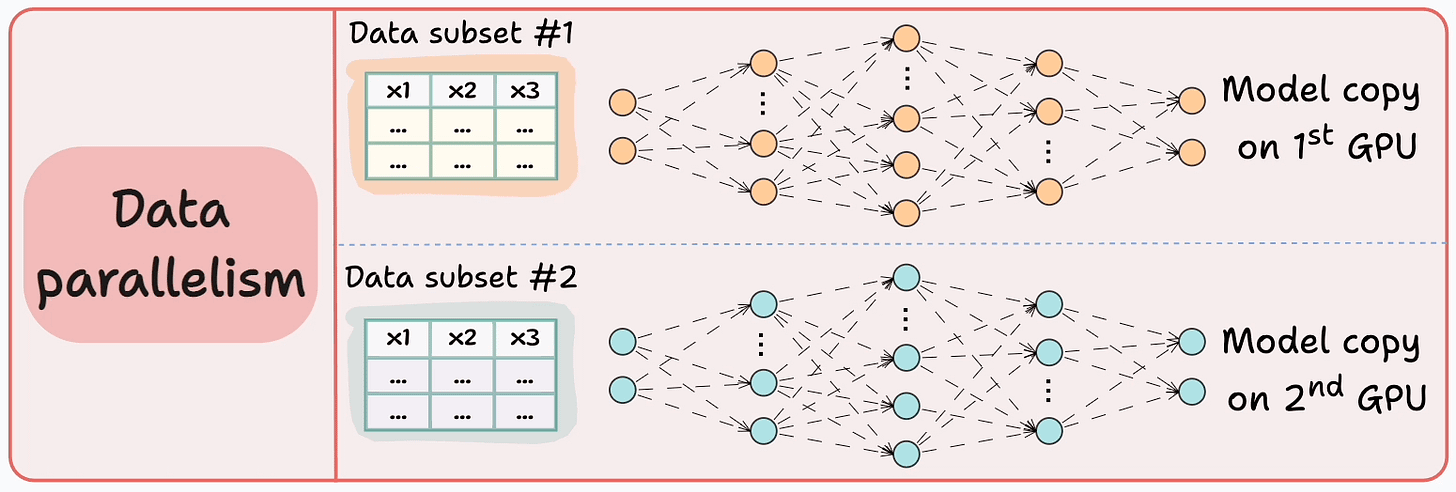

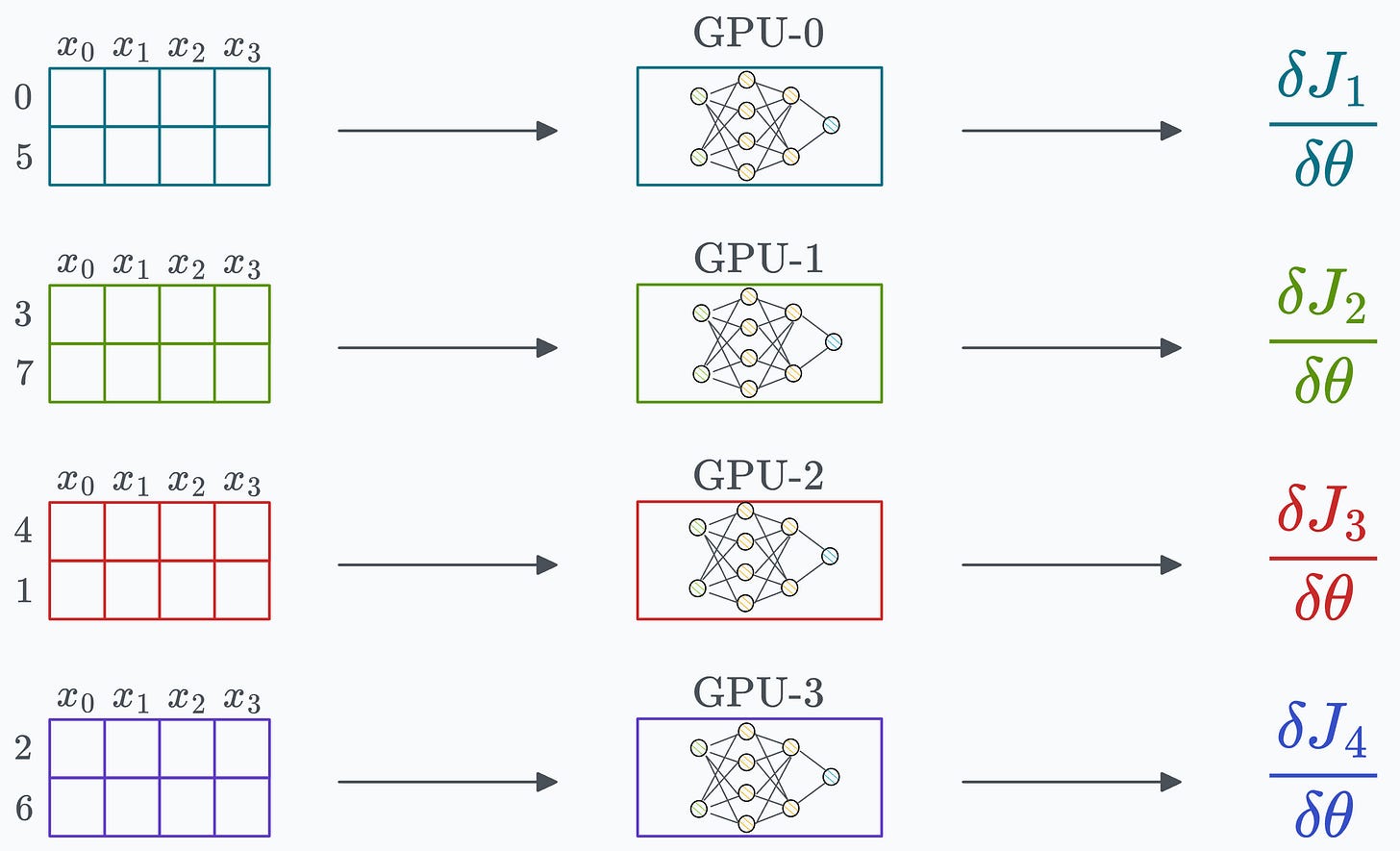

Consider data parallelism, which:

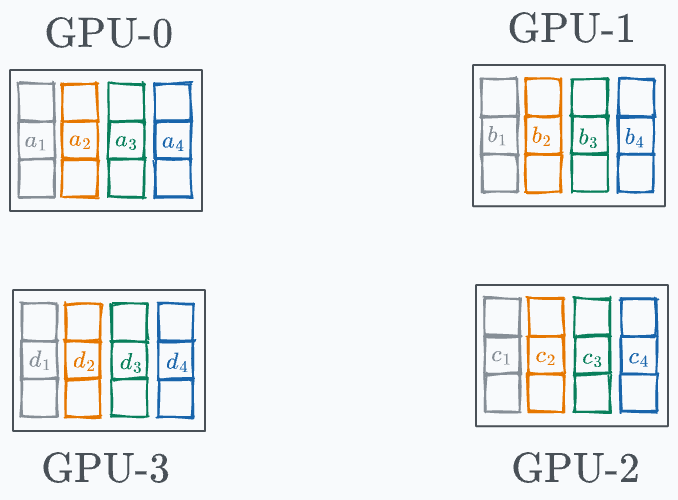

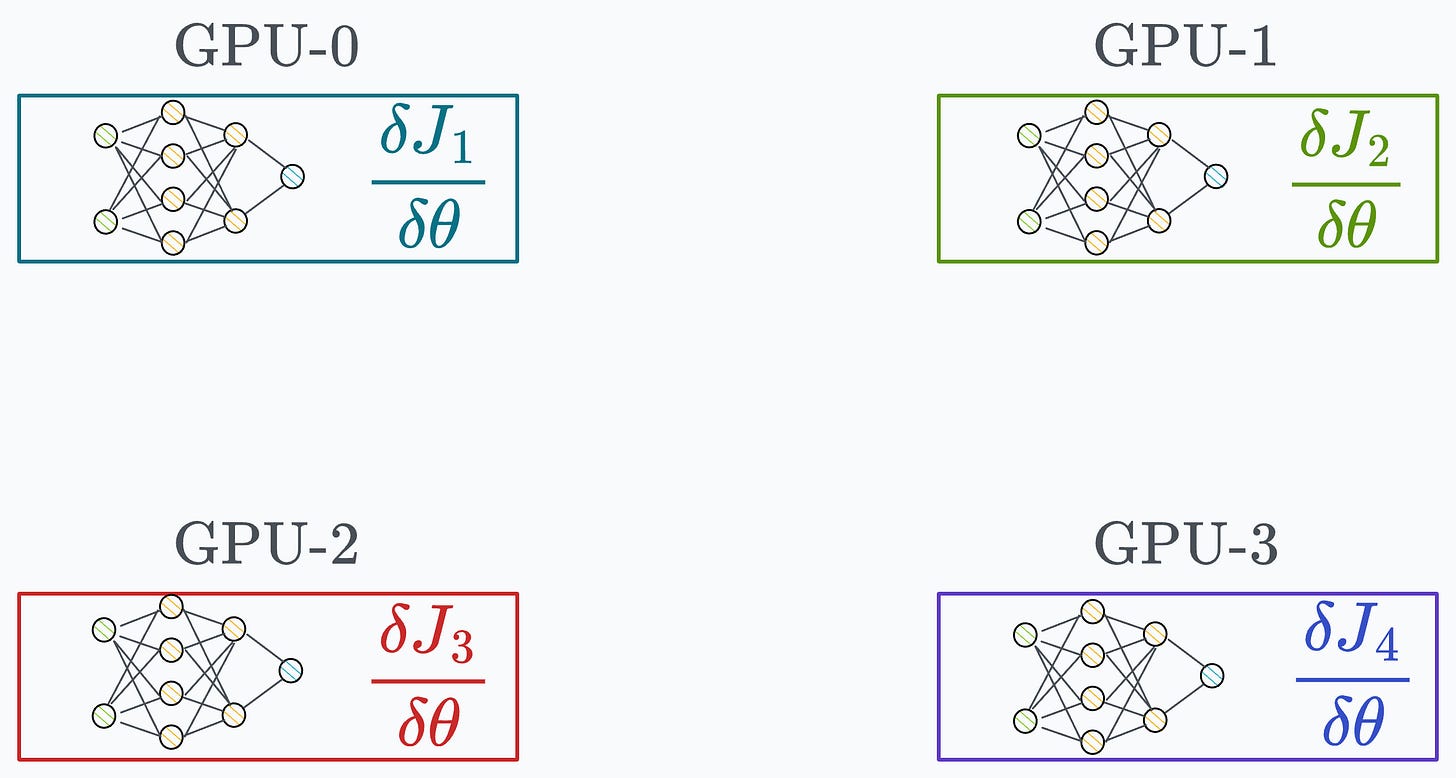

In other words, since every GPU processes a different chunk of the dataset, the gradients will also be different across devices:
Thus, before updating the model parameters on each GPU device, we must communicate these gradients to all other devices.
So, how can we communicate these gradients?

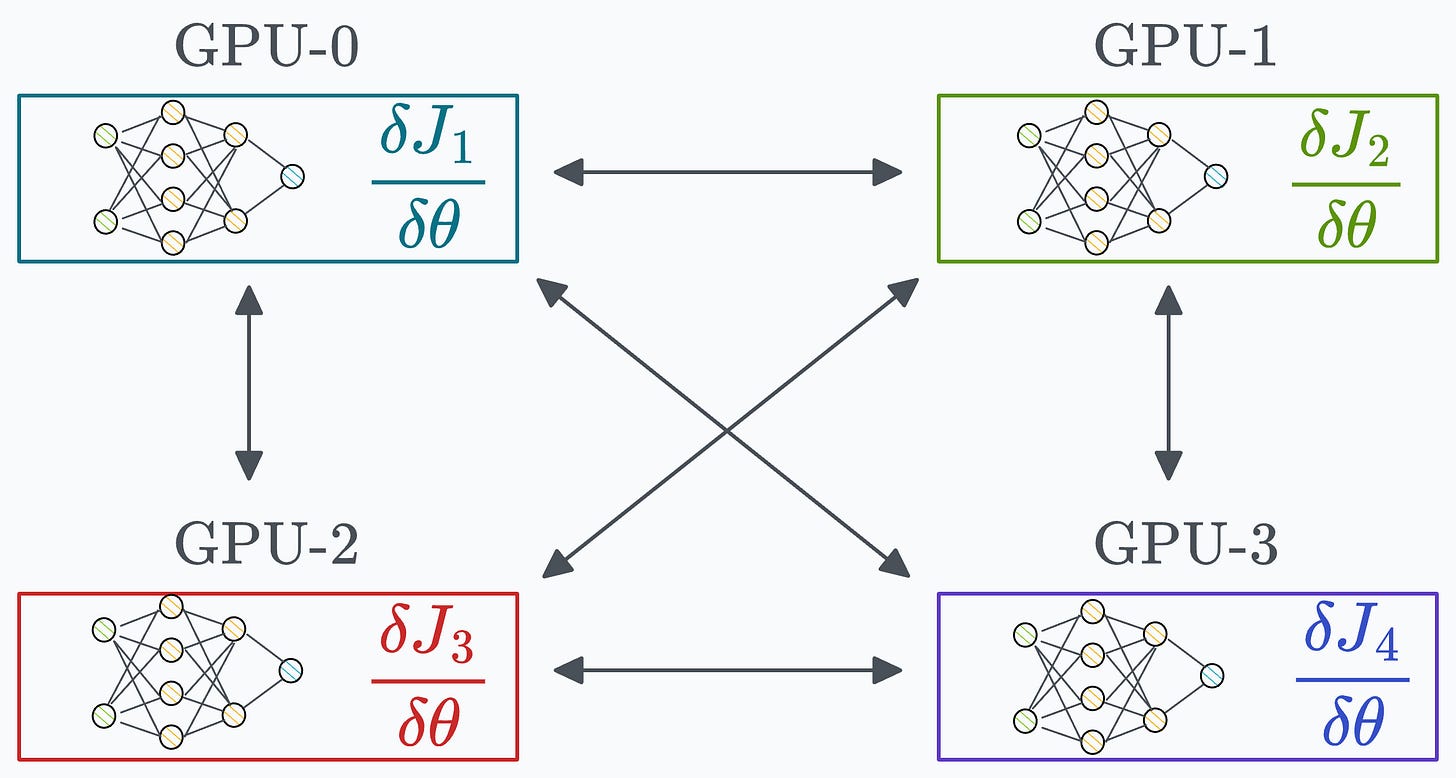

One of the most obvious ways is to send the gradients from one GPU device to all other GPU devices and then average them on every device:

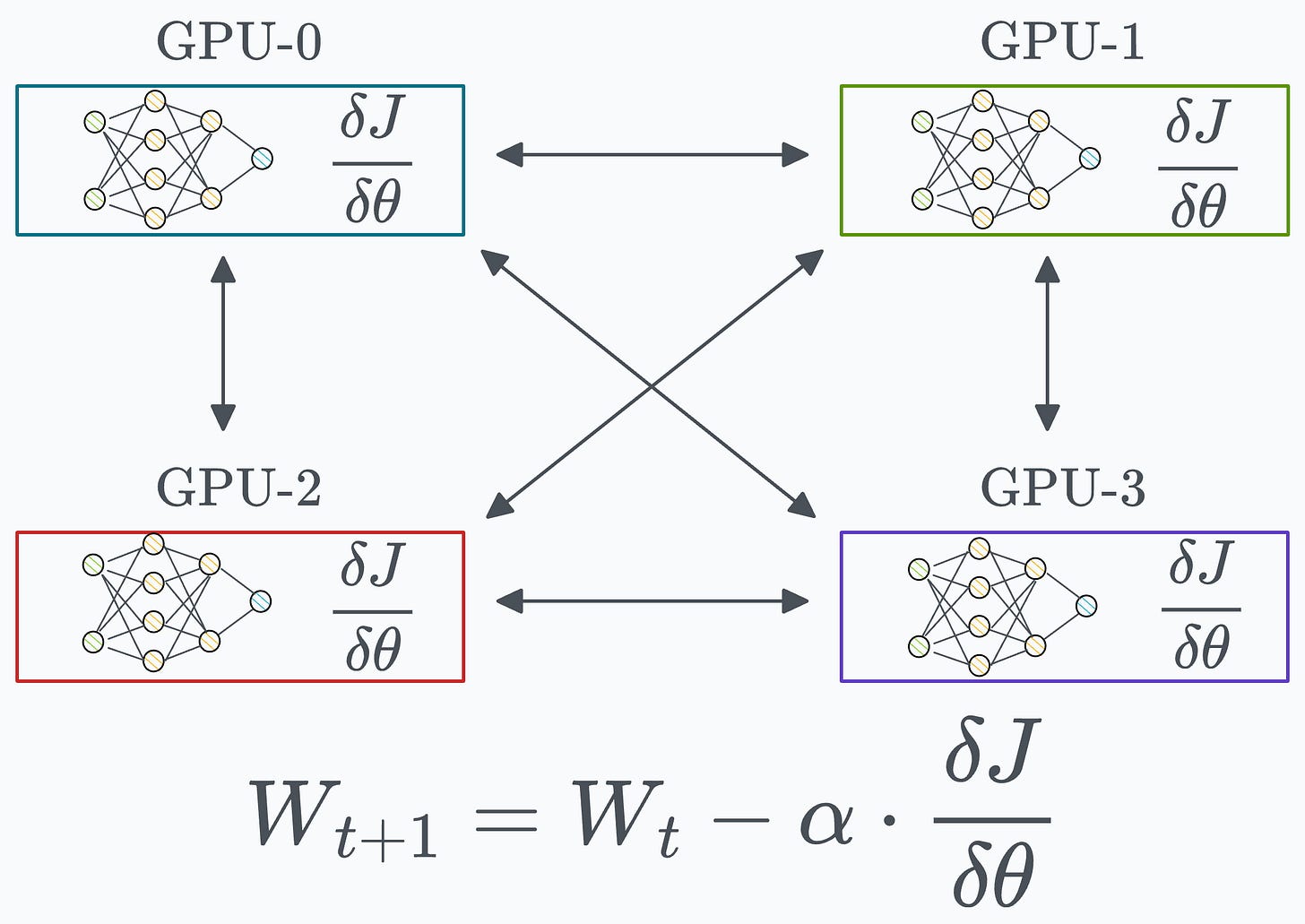

This way, we can synchronize the weight across all devices:
However, this approach is not ideal as it utilizes too much bandwidth.

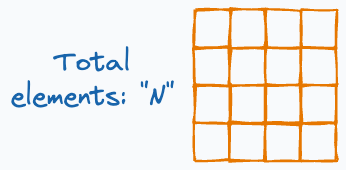

To estimate the number of gradient values transferred, consider that every GPU has a single matrix with “N” elements:

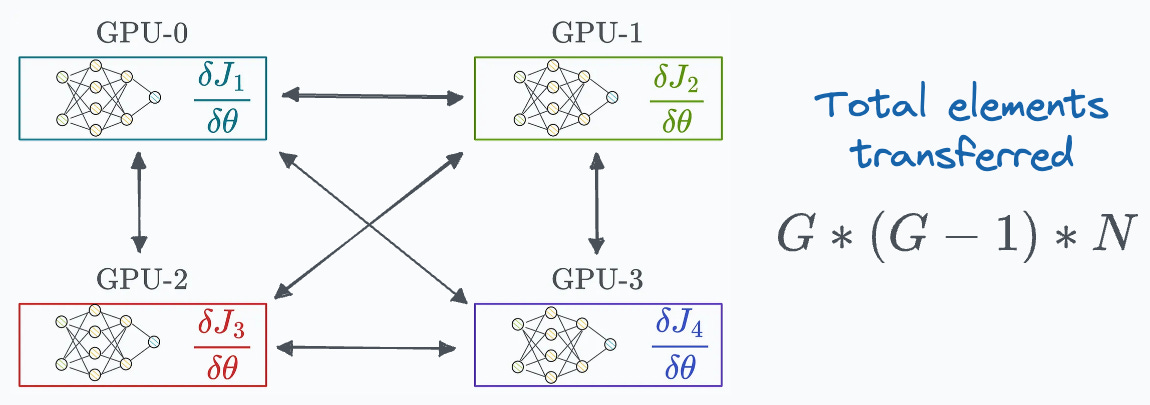

Since every GPU transfers “N” elements to every other GPU, this results in a total transfer of (assuming “G” is the total number of GPUs):

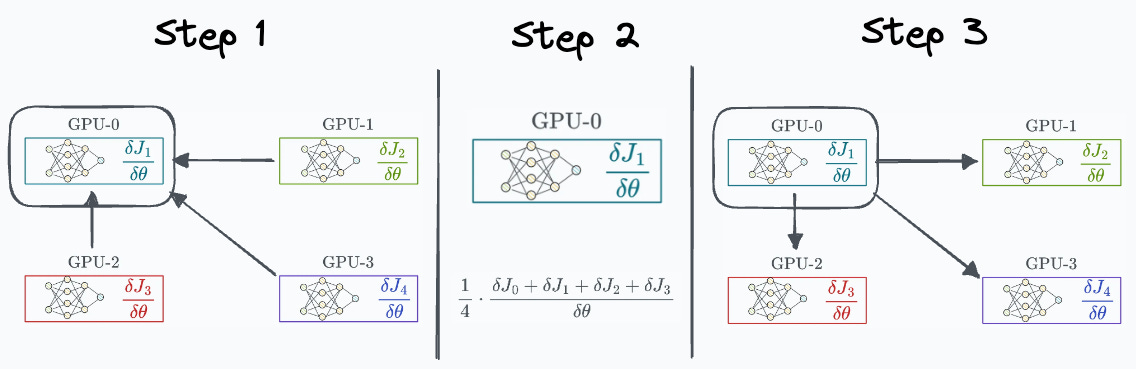

One way to optimize this is by transferring all the elements to one GPU, computing the average, and communicating the average back to all other GPUs:

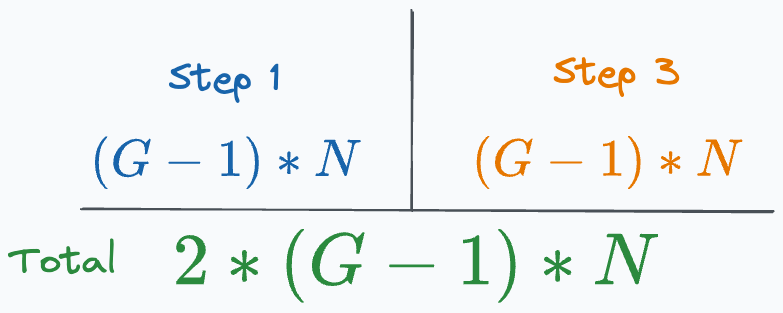

The number of elements transferred is:
(G-1) GPUs transfer “N” elements to the 1st GPU.(G-1) GPUs.
In this case, the total transfers are significantly lower than we had earlier. But we run into a major issue:
Can we do better?
As the name suggests, it has something to do with a ring formation. There are two phases:
Here’s how each of them works.
Gradients are divided into G segment on every GPU (G = total number of GPUs):

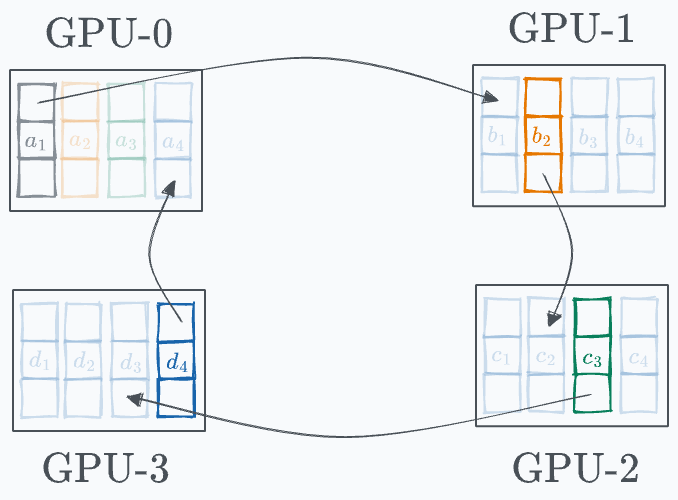

Every GPU communicates a segment to the next GPU in a ring fashion, as demonstrated below:

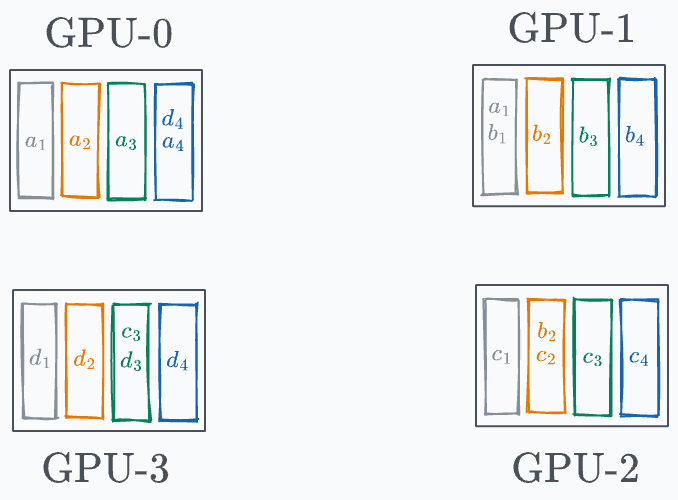

Before the start of the next iteration, the state of every GPU looks like this:
In the next iteration, a similar process is carried out again:

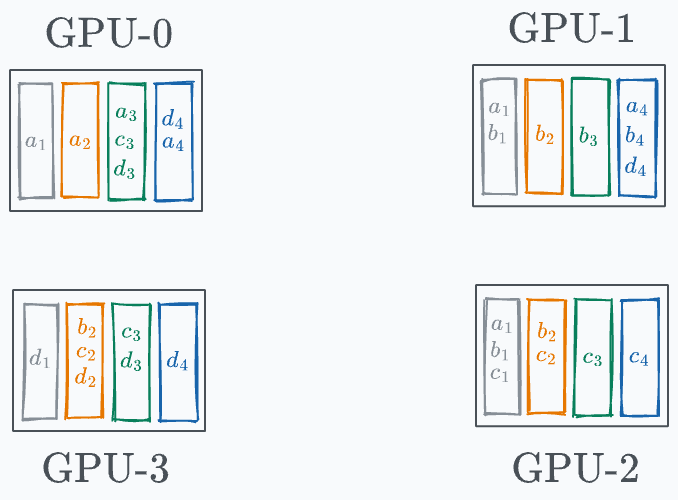

Before the start of the next iteration, the state of every GPU looks like this:

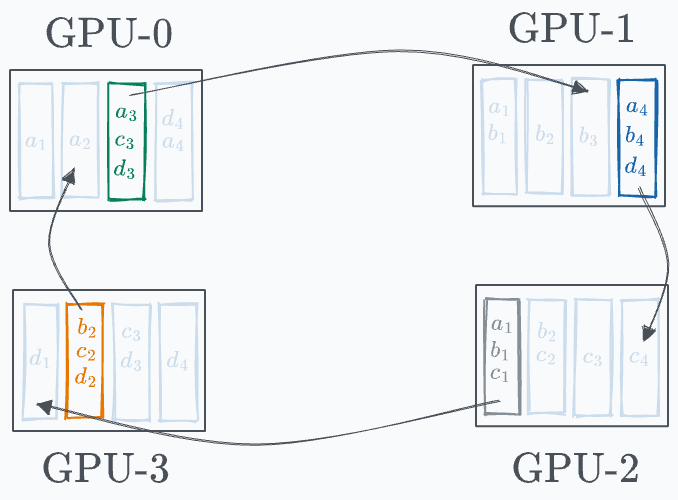

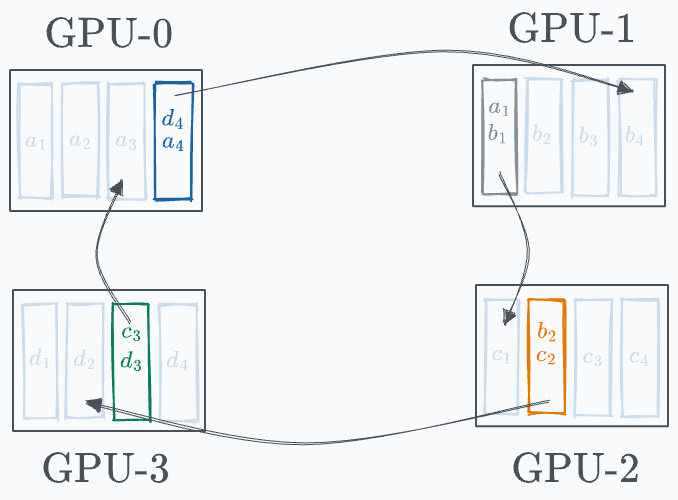

In the final iteration, the following segments are transferred to the next GPU:
Done!

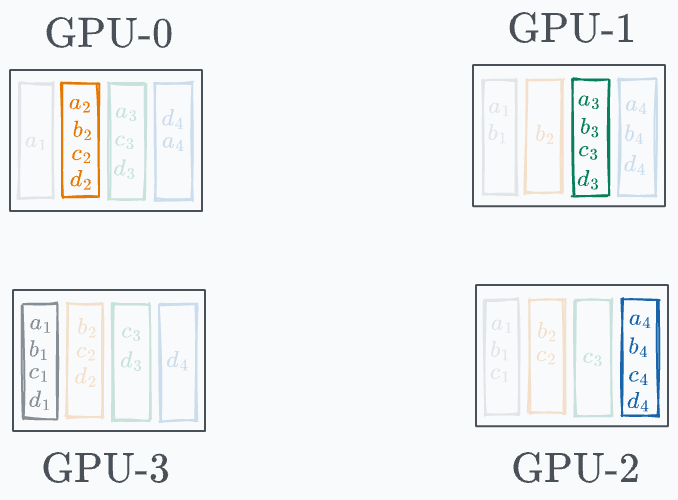

This leads to the following state on every GPU:
As the above diagram shows, every GPU has one entire segment.
Now, our objective is to transfer these complete segments to all other GPUs, which takes us to the next phase.

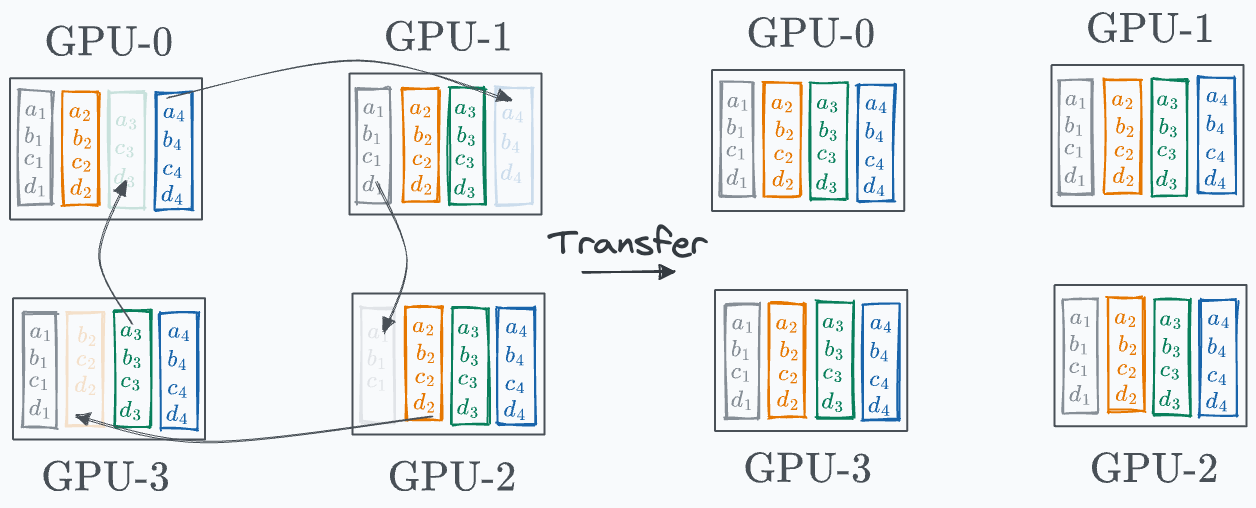

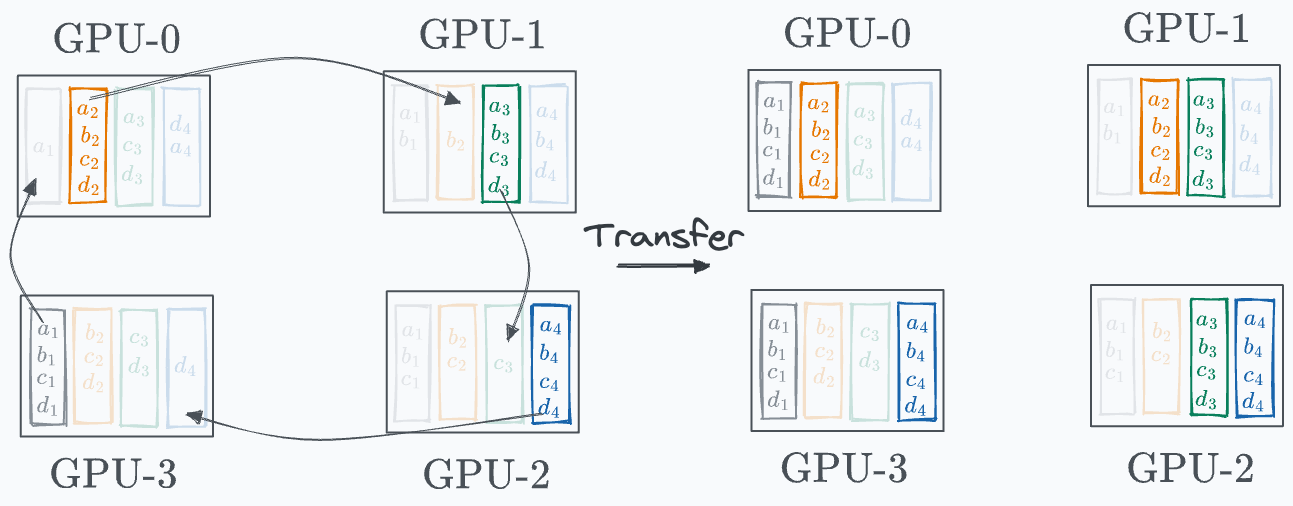

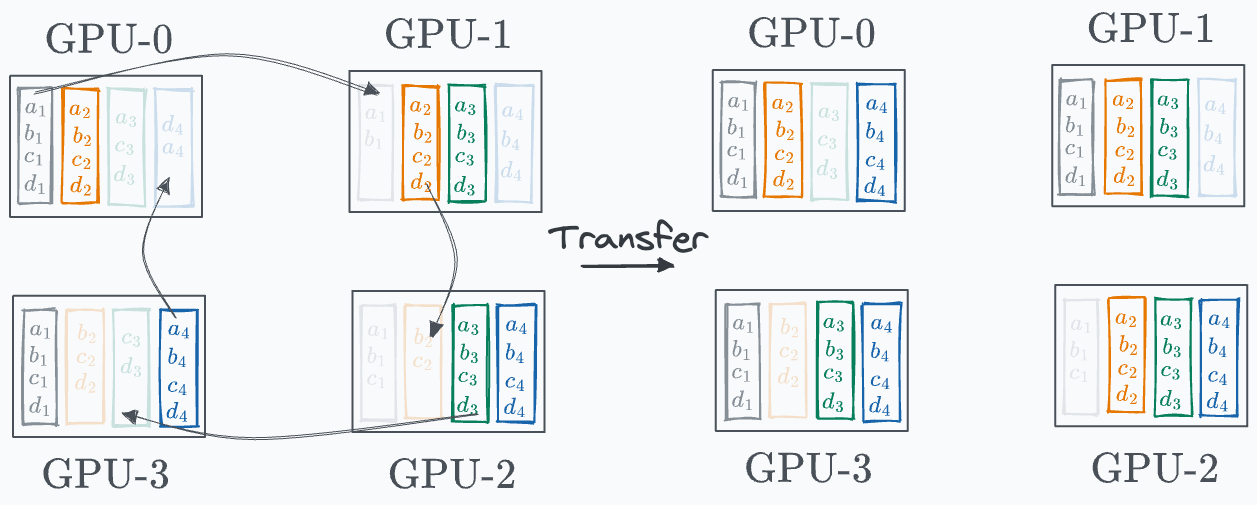

The process is similar to what we discussed above, so we won’t go into full detail.
And there you go!

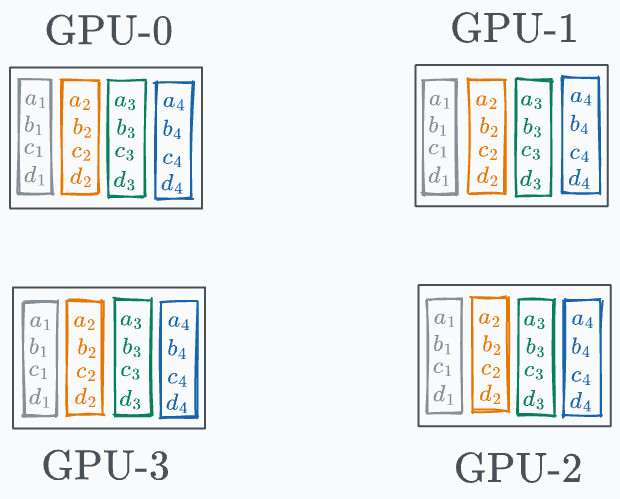

Model weights across GPUs have been synchronized:
Of course, if you notice closely, the number of elements transferred is still the same as we had in the “single-GPU-master” approach.
However, this approach is much more scalable since it does not put the entire load on one GPU for communication.
That’s a clever technique, isn’t it?
If you want to get into the implementation-related details of multi-GPU training, we covered it here: A Beginner-friendly Guide to Multi-GPU Model Training.
Also, methods like ring-reduce are only suitable for small and intermediate models.
We discussed many more advanced methods for large models here: A Practical Guide to Scaling ML Model Training.
👉 Over to you: Can you optimize ring-reduce even further?
